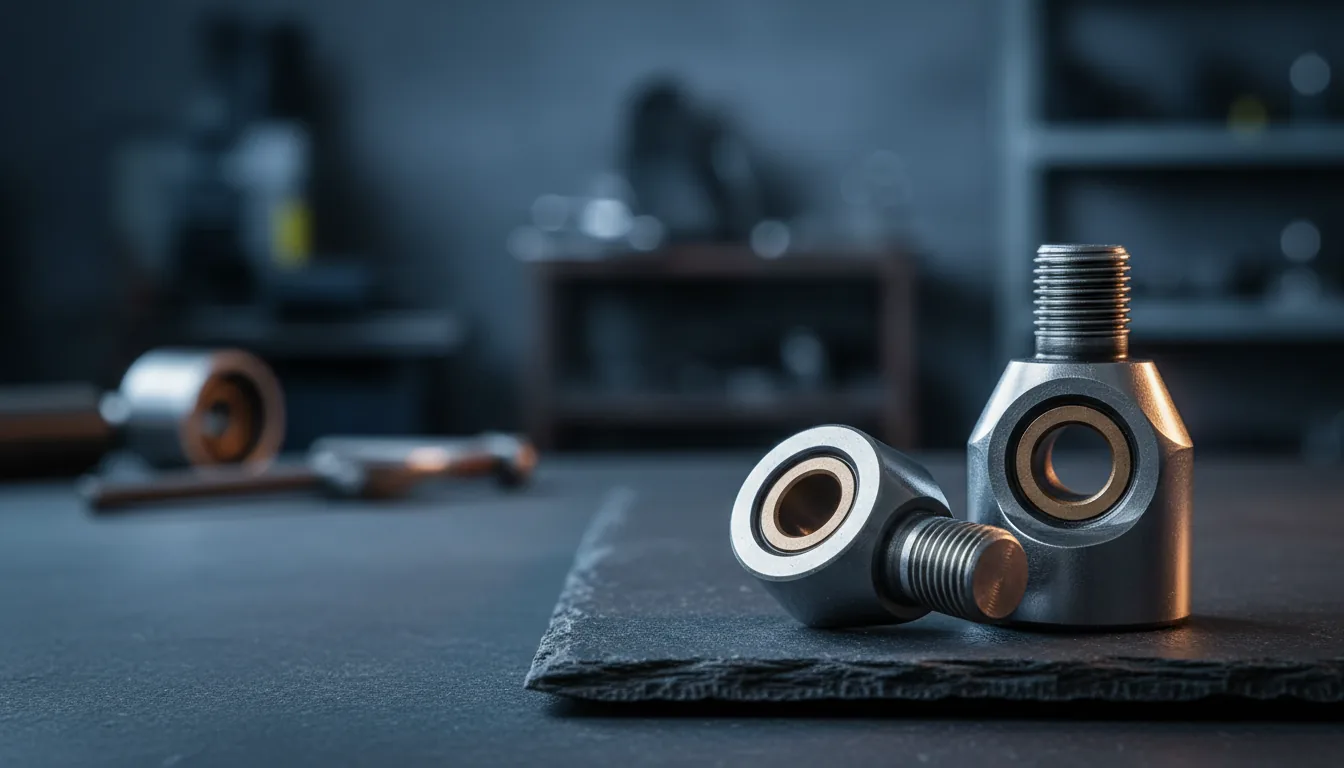

What is a Rod End Bearing? Uses & PHS/POS Guide (2026)

What is a Rod End Bearing? Uses & PHS/POS Guide (2026)

A rod end or spherical plain bearing, identified by PHS or POS prefixes, is an articulating joint used to accommodate heavy loads and misalignment in mechanical linkages and actuators. Unlike standard ball bearings, PHS and POS series rod ends are engineered specifically for oscillating movements and severe misalignment rather than continuous high-speed rotation. Choosing the right type of bearing is the first reliability decision for any industrial application.

HI-TEC Bearings in Pakistan supplies a complete range of left and right-hand PHS and POS rod end bearings in sizes 5 through 25 to help buyers consolidate purchases under one roof. We cover a full series - from deep groove ball to spherical roller and rod ends - so you do not have to rely on ten different sellers. Each type exists for a specific load and motion, and understanding these articulating joints ensures your machinery operates without premature failure.

What is a rod end bearing and how does it work?

A rod end or spherical plain bearing is an articulating joint used to accommodate heavy loads and misalignment in mechanical linkages and actuators. Unlike standard ball bearings, PHS and POS series rod ends are engineered specifically for oscillating movements and severe misalignment rather than continuous high speed rotation.

A spherical plain bearing consists of an inner ring with a spherical convex outside diameter and an outer ring with a matching concave inside diameter[1][2]. These are standardized, ready-to-fit machine elements that enable multi-directional, self-aligning movement between a shaft and housing[1][2]. They are explicitly designed for tilting, swivel, and oscillating movements at relatively low sliding speeds, and can support both static and dynamic loads[1][2]. A rod end bearing is simply a spherical plain bearing integrated into an eye-shaped housing with a male or female thread[1][3]. This design provides a ready-to-install articulating joint for the ends of cylinders, linkages, rods, and shafts where a bearing must accommodate significant misalignment and oscillation[3][4].

The fundamental difference between these joints and conventional rolling element bearings lies in their motion profile. Rolling element bearings are optimized for continuous rotation at high speeds with minimal friction but can only tolerate very small misalignment. In contrast, spherical plain bearings and rod ends excel at severe misalignment and oscillating articulation, carrying heavy radial loads and accommodating large angular displacement that would quickly damage conventional bearings[1][2]. Typical spherical plain bearings allow around ±5-15° of angular misalignment, depending on the series and size[5]. They are radial-load-dominant joints, with axial capacity typically at 5-10% of the radial ultimate load[6][7]. Shop our GE 20 Spherical Plain Bearing or GE 60 Spherical Plain Bearing to see heavy-duty articulation in action.

What do the PHS and POS bearing numbers mean?

The PHS prefix designates a female-threaded rod end, while the POS prefix indicates a male-threaded rod end. Rod ends are categorized by thread direction (left-hand or right-hand) and inner diameter sizes, typically ranging from size 5 to 25 for standard industrial machinery.

PHS and POS rod end bearings are industrial-standard metric rod ends covering bore sizes 5-25 mm, with threads matching standard metric thread pitches[8][9]. The PHS series features an internal (female) thread, typically used as the housing end in linkages[10][9]. The POS series features an external (male) threaded shank, used as the male connecting end[8][11]. Standard female and male types use a right-hand thread, while left-hand threads are indicated by an "L" suffix on the part number, such as PHS10L or POS10L[9][12].

When specifying these components, dimensions are strictly standardized across the industry. The bore size directly correlates with the metric thread size.

Series Bore Size (mm) Thread Specification Typical Pitch (mm)
PHS5 / POS5 5 M5 0.8[8][13]
PHS8 / POS8 8 M8 1.25[8][13]
PHS10 / POS10 10 M10 1.5[8][13]
PHS12 / POS12 12 M12 1.75[8][13]
PHS16 / POS16 16 M16 2.0[8][13]
PHS20 / POS20 20 M20 1.5[8][13]
PHS25 / POS25 25 M24 2.0[8][13]

Load capacities scale significantly with size. For example, static radial allowable loads rise from approximately 490 kg for a POS5 to roughly 2470 kg for a POS12[11]. Smaller sizes typically offer a permissible angular misalignment of ±20°, while larger sizes like PHS20 provide ±15°[14][12]. Whether you need a PHS 10 Rod End Bearing or a POS 8 Rod End Bearing, understanding these prefixes ensures you select the exact thread and bore combination required for your machinery.

What are common rod end bearing uses and where can you buy them in Pakistan?

Common rod end bearing uses include steering linkages, control rods, actuators, and hydraulic cylinder ends where multi-directional self-alignment is required. HI-TEC Bearings in Pakistan supplies a complete range of left and right hand PHS and POS rod end bearings in sizes 5 through 25 to help buyers consolidate purchases.

Rod end bearings are articulating joints used where a link, rod, or cylinder end must move through an angle while staying connected under load[15][2]. They are commonly used at the ends of steering links and tie rods to translate steering input into precise wheel movement while accommodating angular misalignment[16][15]. In industrial machinery, they serve on control rods, tie rods, and linkage systems because they allow articulation without binding when parts are not perfectly aligned[15][2]. Actuators and motion-control assemblies rely heavily on rod ends to manage complex multi-planar movements[2][17].

Furthermore, rod ends are primarily used on the ends of hydraulic or pneumatic pistons to join the cylinder to an associated component[1][18]. In pneumatic cylinders where working pressures regularly reach 1 MPa, maintenance-free rod ends are typically used at the piston rod end to handle the intense cyclic loading and articulation[1]. Their main function is to permit angular motion and misalignment compensation between connected parts while safely transferring force[2][19].

Choosing the right type is the first reliability decision you can make. By partnering with a comprehensive supplier, industrial buyers can consolidate their procurement instead of using ten different sellers. HI-TEC Bearings provides everything from deep groove ball bearings to specialized rod ends under one roof. To secure the exact PHS or POS specification for your machinery, contact us and let our technical team assist you.

Frequently Asked Questions

What is a rod end bearing used for?

A rod end bearing is primarily used in steering linkages, control rods, actuators, and hydraulic cylinder ends[15][2]. It allows angular misalignment and swiveling motion while transferring heavy radial loads between connected components, preventing binding in mechanical linkages[15][19].

How does a spherical plain bearing work?

A spherical plain bearing works by utilizing an inner ring with a spherical convex outside diameter and an outer ring with a matching concave inside diameter[1][2]. This sliding contact design enables multi-directional, self-aligning movement to accommodate severe misalignment and oscillating motion, rather than high-speed continuous rotation[1][2].

What do the PHS and POS bearing numbers mean?

The PHS prefix indicates a rod end with a female internal thread, while POS indicates a male external threaded shank[8][10]. The number following the prefix denotes the bore size in millimeters, such as a 10mm bore for a PHS10, which corresponds directly to standard metric thread sizes[8][13].

Where can I buy rod end bearings in Pakistan?

HI-TEC Bearings is Pakistan's premier supplier of industrial rod end bearings, offering a complete range of PHS and POS series from size 5 to 25. Buying from a single trusted supplier allows industrial facilities to consolidate their bearing procurement efficiently.

References

  1. SKF Spherical Plain Bearings and Rod Ends. https://cdn.skfmediahub.skf.com/api/public/0901d19680154a05/pdf_preview_medium/0901d19680154a05_pdf_preview_medium.pdf (2026-07-16)
  2. Spherical plain bearings, plain bushes, rod ends: 238. https://www.schaeffler.com/remotemedien/media/_shared_media/08_media_library/01_publications/schaeffler_2/catalogue_1/downloads_6/238_de_en_1.pdf (2026-07-10)
  3. Rod End Bearing: Structure, Applications, and Common .... https://iskbearing.com/news/knowledge/introduction-to-rod-end-bearings-structure-applications-and-common-models (2024-07-12)
  4. Technical Data on Rod Ends and Spherical Bearings. https://www.qbcbearings.com/TechInfo/PDF/TechT49_55.pdf (2026-07-08)
  5. Spherical Plain Bearings — Selection, Failures, & Fixes. https://armoloy.com/spherical-plain-bearings-selection-failures-fixes/ (2026-01-15)
  6. Rod Ends and Sphericals: How To — DesignJudges.com. https://www.designjudges.com/articles/rod-ends-and-spherical-bearings (2023-03-06)
  7. Load Ratings of Spherical Bearings. https://www.nhbb.com/index.php/knowledge-center/engineering-reference/rod-end-spherical-bearings/load-ratings (2026-07-06)
  8. Rod End Bearings: The Key to Connecting Mechanical Motions. https://iskbearing.com/news/knowledge/rod-end-bearings-the-key-to-connecting-mechanical-motions (2024-03-11)
  9. ®. http://www.yilinbearing.com/en/uploadimg/20151213201118383.pdf (2026-07-09)
  10. Model PHS (Female Threading Type). https://tech.thk.com/pt/products/pdf/en_a23_006.pdf (2026-07-09)
  11. PHS Catalog. https://fontal-auto.com/product/additional-equipment/rod-end-bearing/ (2025-01-05)
  12. Rod End Bearing - Female Threaded, PHS Series (Part Numbers). https://mx.misumi-ec.com/en/vona2/detail/221000089754/?Tab=codeList (2022-06-15)
  13. PHS, Rod Ends - KG Bearing India. https://www.kgbearing.com/pd/rod-ends/phs/Kg-phs (2023-01-01)
  14. The Ultimate Guide to the Rod End Bearing - BYWB Bearing. https://bywbbearing.com/the-ultimate-guide-to-the-rod-end-bearing/ (2025-12-14)
  15. Rod end bearing. https://en.wikipedia.org/wiki/Rod_end_bearing (2006-11-16)
  16. What Are Rod Ends and How Are They Used? - PIB Sales. https://pibsales.com/tutorials/what-are-rod-ends-and-how-are-they-used/ (2024-09-10)
  17. wind. https://www.bearingstockshop.com/docs/Marcas/Pdfs/RBC/44785_SwageTube.pdf (2025-01-27)
  18. Rod ends. https://www.skf.com/us/products/plain-bearings/spherical-plain-bearings-rod-ends/rod-ends (2026-07-23)
  19. Customize Your GlobalSpec Experience. https://www.globalspec.com/learnmore/mechanical_components/bearings_bushings/rod_end_bearings (2025-11-03)
