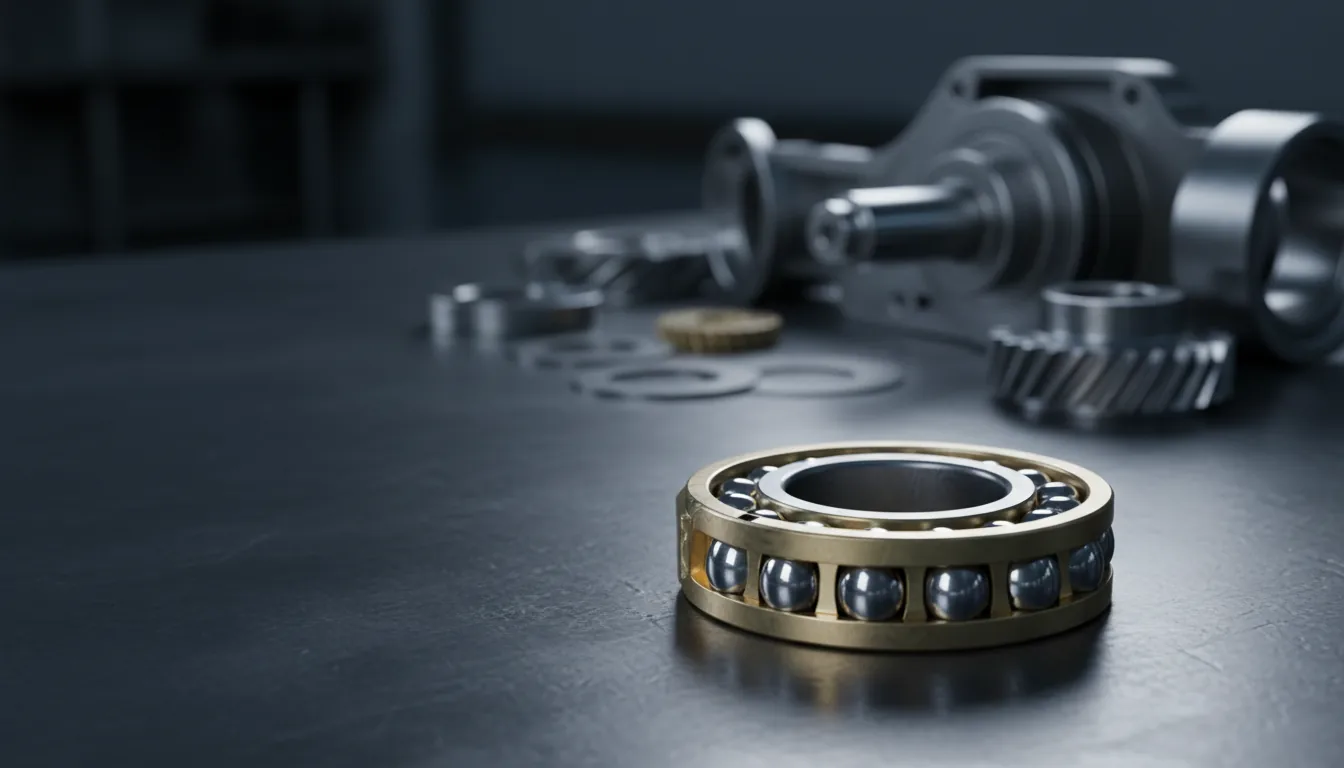

What is an Angular Contact Bearing? 2026 Guide

What is an Angular Contact Bearing? 2026 Guide

An angular contact bearing, such as the 7200 or 7300 series, is a specialized component designed to support significant combined radial and axial loads simultaneously. Unlike standard deep groove bearings, angular contact bearings are engineered for high-speed machines with heavy axial thrust, including industrial water pumps and machine tool spindles. Replacing a 7300 series angular contact bearing with a standard deep groove ball bearing causes rapid failure because standard bearings cannot handle heavy axial loads.

This guide explains exactly how angular contact bearings work, when they are required, and why selecting the correct 7200 or 7300 series bearing from HI-TEC Bearings in Pakistan prevents catastrophic machinery downtime.

What is an angular contact bearing used for and how does it work?

An angular contact bearing is a specialized mechanical component engineered to handle high axial (thrust) loads and radial loads simultaneously. The defining feature of an angular contact bearing is its built-in contact angle - typically between 15° and 40° - which shifts the load path between the inner and outer rings[1][2]. This geometry allows the bearing to support a much higher proportion of axial force than a standard bearing[3].

Many mechanics assume bearings of the same dimensions are interchangeable, but substituting a deep groove ball bearing where an angular contact bearing is specified leads to rapid failure. Deep groove ball bearings are designed primarily for radial loads; their axial capacity is strictly limited to moderate levels, typically only 25% to 50% of their radial rating[4][5]. When the axial to radial load ratio exceeds 0.5, the lifespan of a deep groove bearing plummets[4][6]. In contrast, an angular contact bearing with a 40° contact angle can safely carry axial loads up to about 70% of its dynamic rating[5]. The larger the contact angle, the higher the axial capacity and stiffness[7][8].

Because single-row angular contact bearings support axial load in only one direction, they are frequently mounted in pairs - such as back-to-back or face-to-face arrangements - to manage bi-directional thrust and increase shaft rigidity[9][10]. By using angular contact ball bearings in Pakistan, industrial buyers ensure that high-speed equipment receives the precise load support required. Understanding this fundamental difference between deep groove and angular contact designs is the first step in preventing premature bearing failure and reducing total cost of ownership across manufacturing facilities.

Where are 7200 and 7300 series bearings used in industrial machinery?

Angular contact bearings can take radial load, but they require an axial load to function correctly, making them ideal for industrial water pumps and machine tool spindles. The 7200 and 7300 series are the most common single-row angular contact bearings utilized across heavy industry[11][12]. Both series feature a standard 40° contact angle in many configurations, ensuring high axial stiffness and load capability[13][12].

The 7200 series is classified as a light-to-medium duty bearing[14][15]. Because it generates less friction, it achieves exceptional speeds, with grease lubrication limits reaching up to 22,000 rpm for smaller bores[16]. This makes the 7200 series the industry standard for CNC machine tool spindles, where precision and heat minimization are critical[17][18]. Conversely, the 7300 series is engineered for higher load-carrying capacity and maximum rigidity[19][20]. While its speed limits are slightly lower, a 7300 series bearing offers dynamic load ratings that easily handle the extreme forces inside centrifugal and multistage process pumps[21][22].

HI-TEC Bearings supplies a complete range of angular contact bearings in Pakistan, including the 7205 to 7215 BEP sizes, allowing buyers to consolidate industrial purchasing.

Bearing Series Duty Classification Typical Applications Key Performance Trait
7200 Series Light / Medium CNC spindles, light pumps High speed (up to 22,000 rpm)[16]
7300 Series Heavy / Rigid Centrifugal pumps, heavy milling High dynamic load capacity[21][22]

By offering both the 7200 and 7300 series under one roof, HI-TEC Bearings enables procurement managers to source precisely what their equipment demands without dealing with multiple vendors. If your facility requires expert guidance on bearing selection to eliminate recurring failures, contact us to discuss your specific load and speed requirements.

Frequently Asked Questions

What is an angular contact bearing used for?

An angular contact bearing is used to support heavy combined radial and axial loads simultaneously in high-speed machinery. They are the standard choice for centrifugal water pumps, compressors, and machine tool spindles where significant thrust forces are present[12][23].

What is the difference between a deep groove and an angular contact bearing?

Deep groove ball bearings are designed primarily for radial loads and can only handle moderate axial forces (up to 50% of their radial rating)[4][5]. Angular contact bearings feature a built-in contact angle that allows them to handle much heavier axial loads without failing[1][2].

Can an angular contact bearing take radial load?

Yes, angular contact bearings can take radial load, but they are specifically engineered to handle it in combination with a heavy axial load. Using them for pure radial loads without an axial component can cause the bearing to operate incorrectly.

Where are 7200 and 7300 series bearings used?

The 7200 series is typically used in high-speed, medium-duty applications like CNC machine tool spindles[17][18]. The 7300 series handles heavier loads and is commonly installed in heavy-duty centrifugal process pumps and large industrial motors[22][20].

References

  1. The Difference between Deep Groove and angular Contact Ball Bearings. https://www.spark-bearing.com/article/The-Difference-between-Deep-Groove-and-angular-Contact-Ball-Bearings.html (2020-10-01)
  2. Deep Groove Ball Bearings Angular Contact .... https://aftermarket.cwbearing.com/wp-content/uploads/2025/01/CWBearing_ProductCatalog.pdf (2025-09-15)
  3. Angular Contact Ball Bearings - Schaeffler medias. https://medias.schaeffler.de/en/plp/AngularContactBallBearings (2026-03-03)
  4. Deep Groove Ball Bearing Axial Load Capacity Explained | Yuanhe Bearing. https://www.yuanhecd.com/blog/deep-groove-ball-bearing-axial-load/ (2026-07-10)
  5. Ball Bearing vs Deep Groove Ball Bearing: Key Differences. https://www.aosen-bearing.com/news/industry-news/ball-bearing-vs-deep-groove-ball-bearing-key-differences.html (2026-04-08)
  6. Deep Groove vs Angular Contact Ball Bearings: Selection Guide. https://www.ftmbearings.com/news/industry-news/engineering-guide-on-ball-bearings-deep-groove-vs-angular-contact.html (2026-06-21)
  7. Angular Contact Bearing. https://www.hisupplier.com/product-572416-Angular-Contact-Bearing/ (2026-06-27)
  8. Angular Contact Bearings vs. Radial Bearings: What's the Difference?. https://www.youtube.com/watch?v=JnI1s1665w0 (2024-01-22)
  9. Deep Groove vs. Angular Contact Bearings: Choosing the .... https://www.sanyabearing.com/news/deep-groove-vs-angular-contact-bearings-choosing-the-right-one.html (2025-09-10)
  10. Angular Contact Ball Bearings. https://www.ntnglobal.com/en/products/catalog/pdf/2203E_b04.pdf (2026-07-15)
  11. Timken® Single Row Angular Contact Ball Bearings (7200, 7300) On The Timken Company. https://cad.timken.com/viewitems/angular-contact-ball-bearings-nbsp-/timken--single-row-angular-contact-ball-bearings-- (2019-03-01)
  12. TIMKEN® ANGULAR CONTACT BALL BEARING CATALOG. https://www.timken.com/resources/timken-angular-contact-ball-bearing-catalog_11193/ (2026-07-17)
  13. Ang.Contact.SS. https://www.ahrinternational.com/PDF_catalogues/NTN/angcntct.pdf (2025-04-03)
  14. [PDF] 7200 ANGULAR CONTACT SERIES - PEER Bearing. https://peerbearing.com/wp-content/uploads/single_row_angular_contact_ball_bearings.pdf (2026-02-10)
  15. 7200 Series Light Duty Standard Angular Contact Ball .... https://emersonbearing.com/viewitems/standard-angular-contact-ball-bearings/light-duty-standard-angular-contact-ball-bearings (2026-06-23)
  16. [PDF] ANGULAR CONTACT BALL BEARINGS. https://plusmax.co.th/wp-content/uploads/2020/02/NSK_CAT_E1102m_B46-75.pdf (2025-11-01)
  17. SKF Silent Series super-precision angular contact ball .... https://cdn.skfmediahub.skf.com/api/public/0901d1968090b599/pdf_preview_medium/0901d1968090b599_pdf_preview_medium.pdf (2026-07-16)
  18. Machine Tool Spindle Bearings Types & Selection Guide. https://pibsales.com/tutorials/machine-tool-spindle-bearings-types-selection-guide/ (2026-05-04)
  19. Wholesale 7300 Series Angular Contact Ball Bearings Exporter, Suppliers, Factory - Ningbo Aosen Bearing Co., Ltd.. https://www.aosen-bearing.com/product/angular-contact-ball-bearings/7300-series-angular-contact-ball-bearings.html (2026-06-24)
  20. 7300 Series Heavy Duty Super Precision Angular Contact Ball Bearings. https://products.emersonbearing.com/viewitems/super-precision-ball-bearings/duty-super-precision-angular-contact-ball-bearin-4 (2021-01-21)
  21. 7300 Series Single Row Angular Contact Ball Bearings. https://skf-us-cad-download.skf.com/viewitems/single-row-angular-contact-ball-bearings/single-row-angular-contact-ball-bearings-6 (2025-08-29)
  22. centrifugal pump bearing types. https://www.zhilong-pump.com/article/Industry-Knowledge/718.html (2025-05-27)
  23. Angular contact ball bearings. https://static1.squarespace.com/static/55676859e4b0217a0aee1827/t/561564a6e4b0723c8cde4480/1444242598089/Angular+Contact+Bearings.pdf (2026-07-18)
